S304 Family

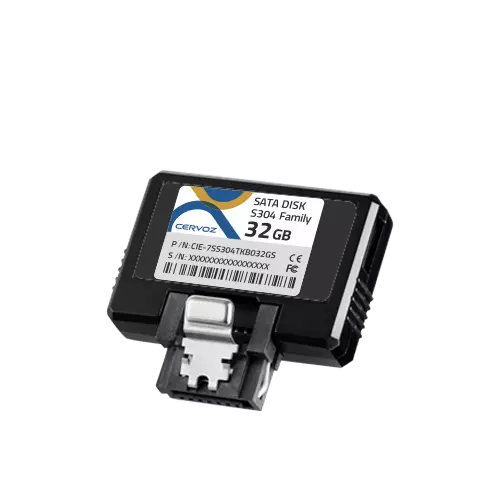

Industrial SATA Disk 7pin Vertical Short Embedded Module

Features

  • Compliant with SATA III 6.0Gb/s
  • SLC NAND flash memory
  • Capacity: 4GB ~ 32GB
  • Operating as boot disk
  • Static and dynamic wear leveling
  • Bad block management
  • S.M.A.R.T. & TRIM command
  • Included standard & wide temp. range
Cervoz Industrial SATA Disk 7pin Vertical Short Embedded Module S304 family is a Solid State Flash Disk product that is in compliance with the SATA III standards. The SATA Disk 7pin Vertical Short Embedded Module S304 family is in low profile form factor and fits in any SATA sockets internally of a PC or on a motherboard; it can be used for both booting or storage purposes.

S304 family uses superior quality preselected single-level cell (SLC) NAND flash memory from the industry leading manufacturer Toshiba. This product includes both standard temperature range and wide temperature range options with various capacities to choose from.

S304 family offers outstanding performance and reliability; the product family is a perfect solution for price sensitive semi-industrial and general industrial applications.





Series
Supreme Series (SLC)
Form Factor
SATA Disk 7pin Vertical Short
Interface
SATA III 6.0Gb/s
Connector
SATA (7pin)
NAND Flash Type
SLC
Capacity
4GB ~ 32GB
Dimension (LxWxH/mm)
29.60 x 33.06 x 10.50
Sequential Read
up to 215MB/s
Sequential Write
up to 120MB/s
ECC Scheme
up to 40bits / 1K Byte
MTBF
>3,000,000 hours
Terabyte Written (TBW)
4GB : 78, 8GB : 156, 16GB : 313, 32GB : 625
Operating Temperature: Standard Temp.
0°C ~ 70°C
Operating Temperature: Wide Temp.
–40°C ~ 85°C
Supply Voltage
5V DC +/-5%
Power Consumption
Active mode: < 820mW, Idle mode: < 430mW
Conformal Coating
Optional
Anti-Vibration Fill
Optional
Standard Temp. (0°C ~ 70°C) Wide Temp. (-40°C ~ 85°C) Capacity
CIE-7SS304THB004GS CIE-7SS304THB004GW 4GB
CIE-7SS304TIB008GS CIE-7SS304TIB008GW 8GB
CIE-7SS304TJB016GS CIE-7SS304TJB016GW 16GB
CIE-7SS304TKB032GS CIE-7SS304TKB032GW 32GB
Date Document Type Capacity
2022.07.04 Industrial_Embedded_Module_SATA_Disk_7pin_Vertical_Short_S304_Datasheet_Rev1.0 0.92 MB
