T405 Family

Industrial M.2 2280 Embedded Module

Features

  • Compliant with PCIe Gen3x4 interface
  • Compliance: NVMe 1.3/ PCIe Base 3.1
  • 3D TLC flash memory
  • Capacity: 128GB ~ 1TB
  • End-to-End data protection
  • SLC write cache technology
  • Thermal throttling technology
  • Operating as boot disk
  • Static and dynamic wear leveling
  • Bad block management

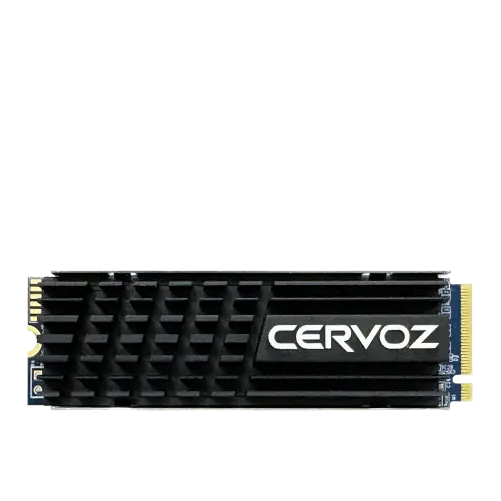

Cervoz Industrial M.2 2280 Embedded Module T405 family is a Solid State Flash Disk product that is in compliance with the M.2 and PCIe Gen3x4 standards. M.2 2280 T405 family fits in any M.2 2280(M) sockets in a PC or motherboard; it can be used for both booting and storage purposes.

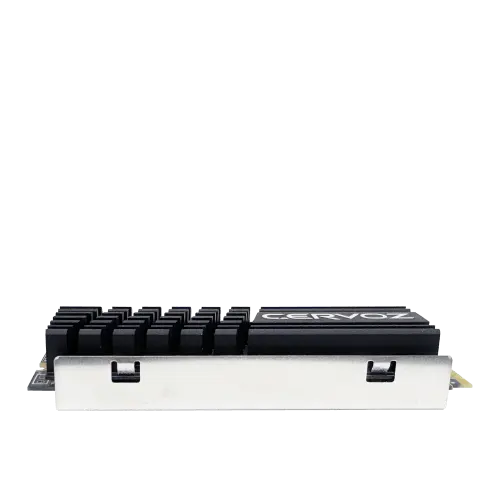

T405 family uses SSD grade quality 3D TLC flash memory from the industry leading manufacturer Micron. Cervoz's firmware builds in a powerful ECC algorithm call Low-Density Parity Check (LDPC) decoding to improve data reliability. Meanwhile, M.2 2280 T405 family with heatsink design to heat dissipation effectively and achieve the best performance. This product includes various capacities to choose from.

T405 family offers outstanding performance and reliability; the product family is a perfect solution for multi-tasking capabilities and general industrial applications.



Series
Titan Series (TLC)
Form Factor
M.2 2280
Interface
PCIe Gen3x4
Connector
M.2 (M)
NAND Flash Type
3D TLC
Capacity
128GB ~ 1TB
Dimension (LxWxH/mm)
80.00 x 22.00 x 3.50
Sequential Read
up to 2080MB/s
Sequential Write
up to 1640MB/s
ECC Scheme
LDPC
MTBF
>3,000,000 hours
Terabyte Written (TBW)
128GB : 219, 256GB : 438, 512GB : 875, 1TB : 1750
Operating Temperature: Standard Temp.
0°C ~ 70°C
Operating Temperature: Wide Temp.
–40°C ~ 85°C
Supply Voltage
3.3V DC +/-5%
Power Consumption
Active mode: < 3130mW, Idle mode: < 560mW
Specialty Technology
End-to-End data protection, SLC write cache technology, Thermal throttling technology
Conformal Coating
Optional
Anti-Vibration Fill
Optional
FlashMonitor
Standard Temp. (0°C ~ 70°C) Wide Temp. (-40°C ~ 85°C) Capacity
CIE-M8T405MMF128GS CIE-M8T405MMF128GW 128GB
CIE-M8T405MMF256GS CIE-M8T405MMF256GW 256GB
CIE-M8T405MMF512GS CIE-M8T405MMF512GW 512GB
CIE-M8T405MOF001TS CIE-M8T405MOF001TW 1TB
Date Document Type Capacity
2024.02.06 Cervoz_Industrial_Embedded_Module_M.2 2280_T405_Datasheet_Rev1.3 1.21 MB
