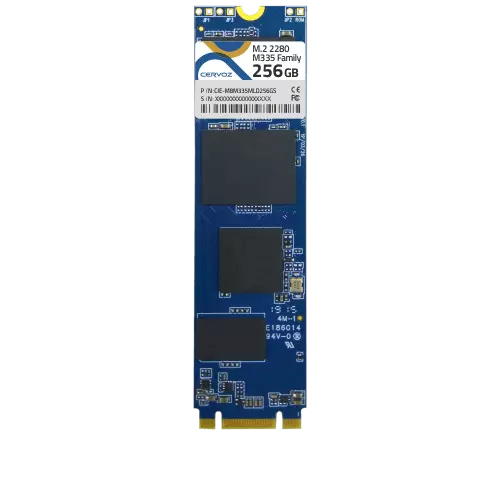

M335 Family
Industrial M.2 2280 Embedded Module
Features
- Compliant with SATA III 6.0Gb/s
- MLC NAND flash memory
- Capacity: 32GB ~ 256GB
- With DRAM Buffer
- Operating as boot disk
- Shock resistance and anti-vibration
- Static and dynamic wear leveling
- Bad block management
- S.M.A.R.T. & TRIM command
- Low power consumption
Cervoz Industrial M.2 2280 Embedded Module M335 family is a Solid State Flash Disk product that is in compliance with the M.2 and SATA III standards. M.2 2280 M335 family fits in any M.2 2280 sockets in a PC or motherboard; it can be used for both booting and storage purposes.
M335 family uses superior quality preselected multi-level cell (MLC) NAND flash memory from the industry leading manufacturer Micron. This product includes various capacities to choose from.
M335 family offers outstanding performance and reliability; the product family is a perfect solution for price sensitive semi-industrial and general industrial applications.
M335 family uses superior quality preselected multi-level cell (MLC) NAND flash memory from the industry leading manufacturer Micron. This product includes various capacities to choose from.
M335 family offers outstanding performance and reliability; the product family is a perfect solution for price sensitive semi-industrial and general industrial applications.
Series
Momentum Series (MLC)
Form Factor
M.2 2280
Interface
SATA III 6.0Gb/s
Connector
M.2 (B+M)
NAND Flash Type
3D MLC
Capacity
32GB ~ 256GB
Dimension (LxWxH/mm)
80.00 x 22.00 x 3.90
Sequential Read
up to 545MB/s
Sequential Write
up to 435MB/s
ECC Scheme
up to 66bits / 1K Byte
MTBF
>3,000,000 hours
Terabyte Written (TBW)
32GB : 31, 64GB : 63, 128GB : 125, 256GB : 250
Operating Temperature: Standard Temp.
0°C ~ 70°C
Operating Temperature: Wide Temp.
–40°C ~ 85°C
Supply Voltage
3.3V DC +/-5%
Power Consumption
Active mode: < 2295mW, Idle mode: < 390mW, Slumber mode: <70mW
With DRAM Buffer
✓
Conformal Coating
Optional
Anti-Vibration Fill
Optional
FlashMonitor
✓
| Standard Temp. (0°C ~ 70°C) | Wide Temp. (-40°C ~ 85°C) | Capacity |
|---|---|---|
| CIE-M8M335MKD032GS | CIE-M8M335MKD032GW | 32GB |
| CIE-M8M335MKD064GS | CIE-M8M335MKD064GW | 64GB |
| CIE-M8M335MKD128GS | CIE-M8M335MKD128GW | 128GB |
| CIE-M8M335MLD256GS | CIE-M8M335MLD256GW | 256GB |
| Date | Document Type | Capacity |
|---|---|---|
| 2022.12.30 | Cervoz_Industrial_Embedded_Module_M.2 2280_M335_Datasheet_Rev2.1 | 0.97 MB |
