MEC-LAN-2631i
Industrial M.2 2230 (A+E key) PCIe Ethernet Expansion Card_2631i
Features
- Single-Lane (x1) PCI-Express with throughput up to 5.0/2.5GT/s
- Fully compliant with PCI-Express Base Specification Rev.2.1
- Integrated 10/100/1000/2500Mbps transceiver
- IEEE 802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3z and IEEE 802.3bz compliant
- IEEE 802.3x and IEEE 802.3z flow control
- Support Wake-on-LAN

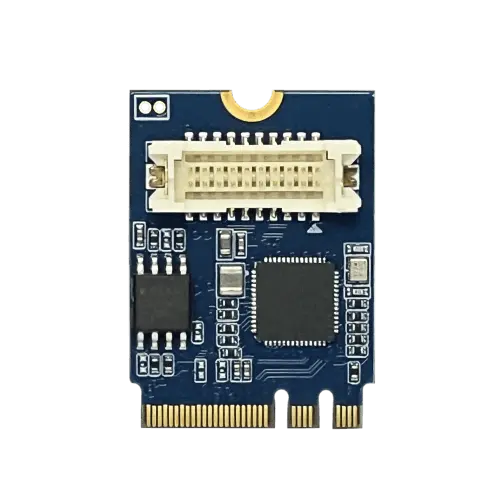

MEC-LAN-2631i is a single isolated 2.5GbE LAN module for embedded PC. The card follows the M.2 standard which is compliant with PCI Express x 1 classification and M.2 form factor. This board fits in any host computer that has M.2 slots. MEC-LAN-2631i is a highly cost-effective solution to expand Gigabit network for your computer.
MEC-LAN-2631i has one Ethernet port that supports auto-negotiation 10/100/1000/2500Mbps Ethernet connection with IEEE 802.3x and IEEE 802.3z flow control.
MEC-LAN-2631i uses high performance, efficiency, and stability Intel I226 Gigabit Ethernet Controller.

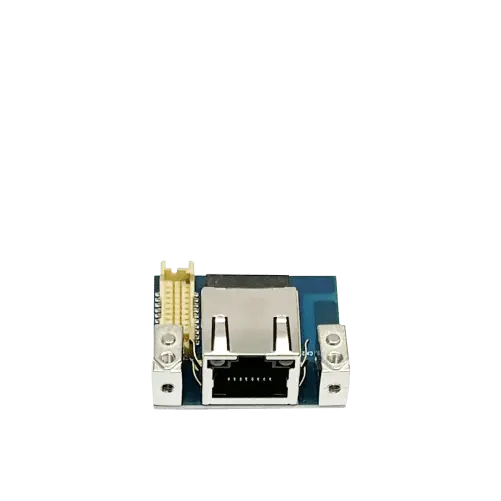

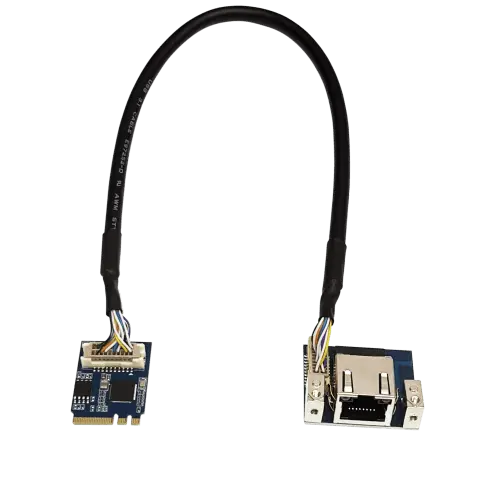

MEC-LAN-2631i is designed with flexibilities for many different application and accessories (daughter board, bracket, connection cable) are included in the standard package.
MECFIX is the unique mounting mechanism designed especially for MEC daughterboard. The feature of the mounting unit allows the following mounting options:
1. Standard PCI/PCIe Bracket
2. Low Profile PCI/PCIe Bracket
3. Internal Mounting inside of PC system from any position and angle.
4. Customizing Front/Rear Plate of PC system according to dimension of MEC daughterboard.
Top Performance
MEC-LAN-2631i has one Ethernet port that supports auto-negotiation 10/100/1000/2500Mbps Ethernet connection with IEEE 802.3x and IEEE 802.3z flow control.
MEC-LAN-2631i uses high performance, efficiency, and stability Intel I226 Gigabit Ethernet Controller.
High Usability
MEC-LAN-2631i is designed with flexibilities for many different application and accessories (daughter board, bracket, connection cable) are included in the standard package.
MECFIX – Versatile Mounting
MECFIX is the unique mounting mechanism designed especially for MEC daughterboard. The feature of the mounting unit allows the following mounting options:
1. Standard PCI/PCIe Bracket
2. Low Profile PCI/PCIe Bracket
3. Internal Mounting inside of PC system from any position and angle.
4. Customizing Front/Rear Plate of PC system according to dimension of MEC daughterboard.
Solution
Ethernet
Form Factor
M.2 2230 (A+E key)
Interface
Ethernet 10/100/1000/2500Mbps x 1 (RJ45)
PCI-Express Revision
PCI-Express Base Specification Rev. 2.1
Electromechanical Revision
PCI-Express M.2 Electromechanical Rev. 1.1
Dimensions (WxL/ mm)
22.00 x 30.00
Controllers
Intel I226-IT x1
Bus
Single-Lane (x1) PCI-Express with throughput up to 5.0/2.5GT/s
Power Consumption
350mA@3.3V
Operation Temp.
-40°C ~ 85°C
Storage Temp.
-40°C ~ 125°C
Isolation
Isolated GbE LAN port: Single
MECFIX
✓
Driver Support
Win 10, Win 11
Warranty
3 years
| Model No. | Description |
|---|---|
| MEC-LAN-2631i | M.2 2230 (A+E key) 1 port 2.5GbE isolated Ethernet board (-40℃~+85℃) |
