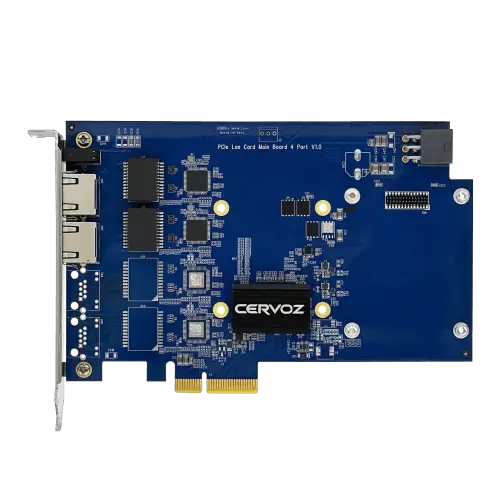

MEC-LAN-P002
Industrial PCIe Expansion Card
Features
- Quad-Lane (x4) PCI-Express with throughput up to 5.0/2.5Gbps
- Fully compliant with PCI-Express Base Specification Rev 2.0
- Integrated 10/100/1000Mbps transceiver
- Support two isolated GbE LAN ports
- Two independent PSE channels
- Support Wake-on-LAN
- Complies with IEEE 802.3at
- Support power input 12V ~ 24V from 6pin PCIE-ATX

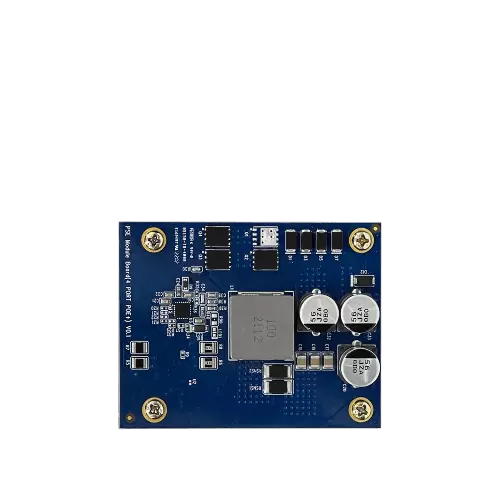

MEC-LAN-P002 is a dual isolated GbE LAN module for embedded PC. The card follows the PCI-e standard which is compliant with PCI Express x 4 classification. This board fits in any host computer that has PCI-e card slots. MEC-LAN-P002 is a highly cost-effective solution to expand Gigabit network for your computer. External Power over Ethernet Plus (PoE+) module ensures reliable power and data transfer and supplies more power than standard PoE.
MEC-LAN-P002 has two Ethernet ports that support auto-negotiation 10/100/1 OOOMbps Ethernet connection with IEEE 802.3x flow control.
MEC-LAN-P002 uses high performance, efficiency, and stability Intel 1210 Gigabit Ethernet Controller.
MEC-LAN-P002 is designed with flexibilities for many different application and accessories (heat sink, bracket) are included in the standard package.
Top Performance
MEC-LAN-P002 has two Ethernet ports that support auto-negotiation 10/100/1 OOOMbps Ethernet connection with IEEE 802.3x flow control.
Intel Ethernet Chipset
MEC-LAN-P002 uses high performance, efficiency, and stability Intel 1210 Gigabit Ethernet Controller.
High Usability
MEC-LAN-P002 is designed with flexibilities for many different application and accessories (heat sink, bracket) are included in the standard package.
Solution
Ethernet
Form Factor
PCIe GEN2x4
Interface
Ethernet 10/100/1000 x 2 (RJ45)
PCI-Express Revision
PCI-Express Base Specification Rev 2.0
Electromechanical Revision
PCI-Express Base Specification Rev. 2.0
Dimensions (WxL/ mm)
168.00 x 111.00
Controllers
Intel I210 x 2
Bus
Single-Lane (x1) PCI-Express with throughput up to 5.0/2.5Gbps
Power Consumption
900mA@3.3V
Operation Temp.
0 ~ 70°C
Storage Temp.
-40°C ~ 125°C
Isolation
GbE LAN port: Yes, PoE+: No
Driver Support
Win 7, Win 8, Win 10
Warranty
3 years
| Model No. | Description |
|---|---|
| MEC-LAN-P002 |
PCl-e 2 port 10/100/1000 Ethernet card
|
| MEC-LAN-P002P |
PCI-e 2 port 10/100/1000 Ethernet card with PoE+ Module
|
