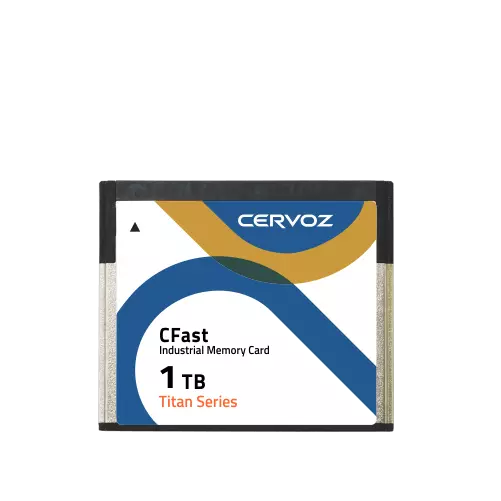

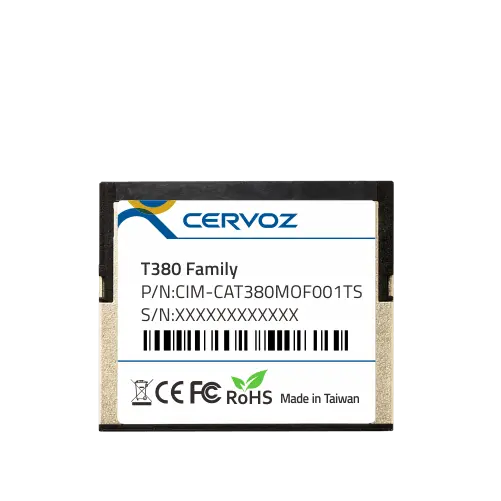

T380 Family
Industrial CFast Memory Card
Features
- Compliant with SATA III 6.0Gb/s
- 3D TLC NAND flash memory
- Capacity: 64GB ~ 1TB
- End-to-End data protection
- SLC write cache technology
- Operating as boot disk
- Static and dynamic wear leveling
- Bad block management
- S.M.A.R.T. & TRIM command
- Included standard & wide temp. range
Cervoz Industrial CFast Card T380 Family is a high capacity Solid State Flash Disk product that is in compliance with the CFast and SATA III standards. The device design is based on the 7pin for data segment and 17pin for power and controller segment. The T380 Family CFast card is in low profile form factor and fits in any systems with CFast slots. T380 family uses SSD grade quality 3D NAND flash memory from the industry leading manufacturer Micron. Cervoz's firmware builds in a powerful ECC algorithm call Low-Density Parity Check (LDPC) decoding to improve data reliability. This product includes various capacities to choose from.
T380 family offers outstanding performance and reliability; the product family is a good cost-effective solution for semi-industrial and high-capacity storage applications.
T380 family offers outstanding performance and reliability; the product family is a good cost-effective solution for semi-industrial and high-capacity storage applications.
Series
Titan Series (TLC)
Form Factor
CFast
Interface
SATA III 6.0Gb/s
Connector
SATA (7+17 pin)
NAND Flash Type
3D TLC
Capacity
64GB ~ 1TB
Dimension (LxWxH/mm)
42.8 x 36.4 x 3.3
Sequential Read
up to 560MB/s
Sequential Write
up to 505MB/s
ECC Scheme
LDPC
MTBF
>3,000,000 hours
Terabyte Written (TBW)
64GB : 109, 128GB : 219, 256GB : 438, 512GB : 875, 1TB : 1750
Operating Temperature: Standard Temp.
0°C ~ 70°C
Operating Temperature: Wide Temp.
–40°C ~ 85°C
Supply Voltage
3.3V DC +/- 5%
Power Consumption
Active mode: < 1400mW, Idle mode: < 275mW
Specialty Technology
End-to-End data protection, SLC write cache technology
Conformal Coating
Optional
Anti-Vibration Fill
Optional
FlashMonitor
✓
| Standard Temp. (0°C ~ 70°C) | Wide Temp. (-40°C ~ 85°C) | Capacity |
|---|---|---|
| CIM-CAT380MLF064GS | CIM-CAT380MLF064GW | 64GB |
| CIM-CAT380MMF128GS | CIM-CAT380MMF128GW | 128GB |
| CIM-CAT380MMF256GS | CIM-CAT380MMF256GW | 256GB |
| CIM-CAT380MOF512GS | CIM-CAT380MOF512GW | 512GB |
| CIM-CAT380MOF001TS | CIM-CAT380MOF001TW | 1TB |
| Date | Document Type | Capacity |
|---|---|---|
| 2022.12.30 | Cervoz_Industrial_Memory Card_CFast_T380_Datasheet_Rev1.1 | 0.99 MB |
